Stanley DST 150/8/24 SXCMS1324H - Electric Wheeled Air Compressor - 24L Oilless - Silenced

Questions & Answers (2)
ID: K601555

EAN: 8016738771480

MPN: B2CC2G4STN704

7,0/10
After-sales assistance & Spare parts
Stanley DST 150/8/24 SXCMS1324H - Electric Wheeled Air Compressor - 24L  Oilless - Silenced
+400 sold
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
24 L
Max. operating pressure
8 bar
Air intake flow
150 L/min
Cylinder head rpm
1450 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Motor type
Induction
Nominal power
1.3 HP
Operating mode
Single-phase 230 V
Product Features
Model:
SXCMS1324H
Air compressor type 2:
Oilless
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
24 L
Noise level:
59 dBA
Manufacturing country:
China
Motor data
Motor type:
Induction
Nominal power:
1.3 HP
Silenced:
Yes
Power supply:
220 V electric
Tank capacity:
24 L
Manufacturing country:
China
Pump data
Pump brand:
Stanley
Model:
150/8/24
Air intake flow:
150 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Nominal power:
750 W
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1450 RPM
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Rear wheels size:
120 mm
Rubber-coated soft grip:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
85X35X53 cm
Net weight:
22.4 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
60x28x61 cm
Gross weight (packaging included) :
26 Kg
Assembly time:
15 minutes
Prompt Delivery
24 items in stock
Free Shipping
Estimated delivery: 08/05/2025 - 12/05/2025
€ 224,11
Vat included

You're viewing:
Customers also viewed:
Description

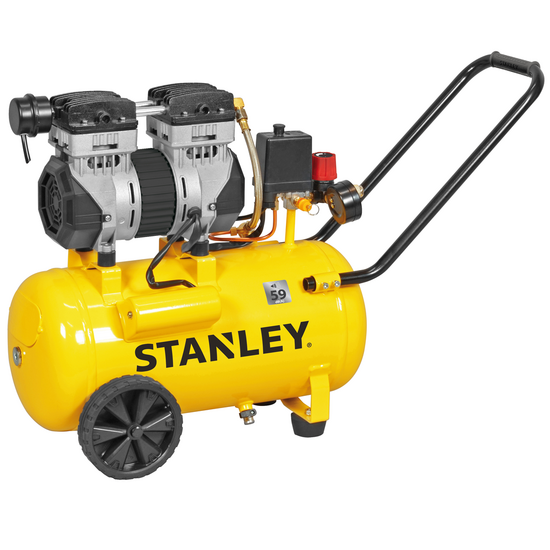

STANLEY DST 150/8/24 SXCMS1324H Electric Air Compressor - 24 L - 1 Hp - Oilless - Silenced

The STANLEY DST 150/8/24 Silenced Wheeled Air Compressor is a very innovative product. It is a great choice for all hobbyists looking for a reliable, silent, lightweight and high-performing equipment.

Its good capacity (24 L) allows it to be used even for extended working time, slightly above the standard average.

Powered by a 1.3 HP electric motor, this product has a compressed air suction capacity of 150 L/min. It is capable of reaching a maximum pressure of 8 bar.

It comes with a large compressed air storage tank of 24 L. It weighs 22.4 Kg and can be easily transported thanks to its wheels and to the upper handle.

This air compressor belongs to the Stanley silenced line
.

Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these compressors, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.

It is also equipped with practical swivelling wheels at the front to facilitate moving the air compressor.

Suitable for a number of hobby applications:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Screw driving
  • Washing operations
  • Chiselling
  • Polishing
  • Grinding

Technical features

Pumping unit type: coaxial - oil-free

Air intake flow: 150 L/min

Pressure: 8 bar

Electric motor power: 1.3 Hp

Tank: 24 L

Noise emissions: 59 dB(A)

Same value expressed in LWA: 79 dB


Overall dimensions:
- Width: 850 mm
- Height: 530 mm
- Depth (or thickness): 350 mm

Weight: 22.4 kg

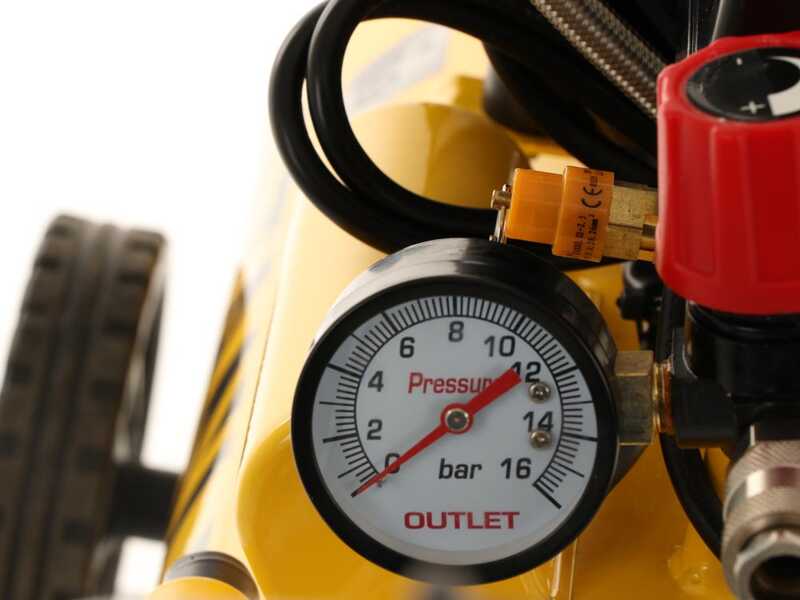

Controls

The STANLEY DST 150/8/24 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Pressure adjusting knob

Air compressor female outlet fitting

Output air pressure gauge

Air release valve

Tank air pressure gauge

1.3 Hp single-phase induction electric motor

Power supply: 230 V

Power: 1.3 Hp - 1 kW

Advantages of the induction motor:
- Simplified wiring: brush motors can be connected directly to DC (direct current) supply and control can be as simple as a switch.
- Low costs

It is renowned as a top-quality motor in terms of reliability, low noise, durability, energy efficiency and maintenance.

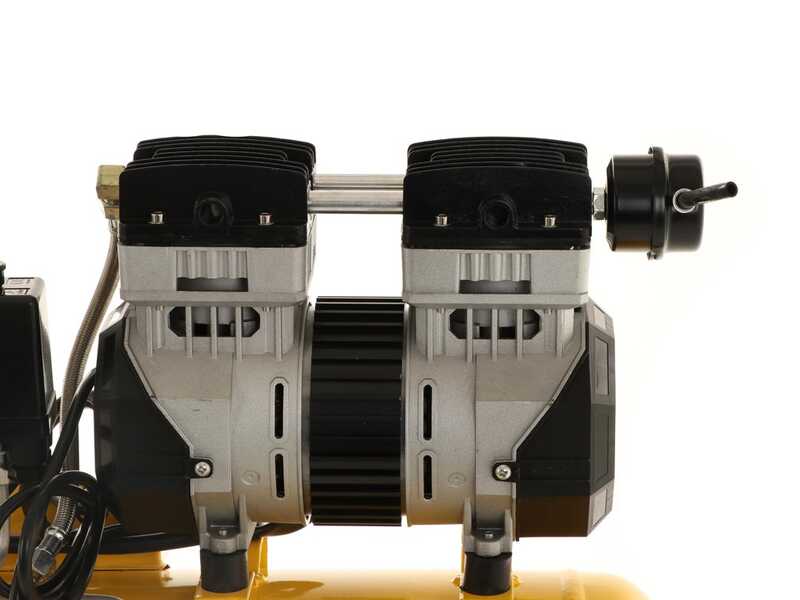

Cylinder head

Air intake flow: 150 L/min
Cylinder head type: single-cylinder with cast iron cylinder
Suction type: single stage
Lubrication: oilless

No. of revolutions: 1450 rpm


The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

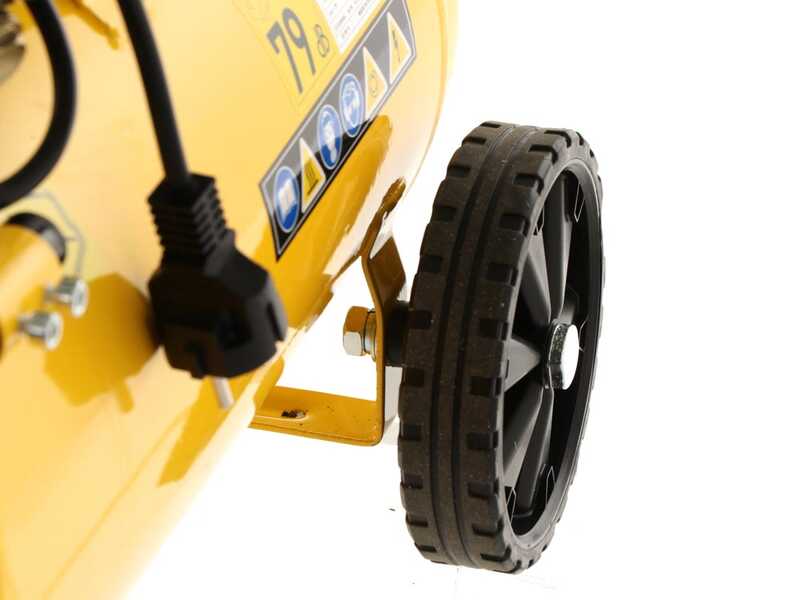

Other features

Schuko plug

Ergonomic transport handle

Large sturdy plastic wheels

Anti-vibration rubber pad

Condensate drain valve

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
