Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

Hobby
Questions & Answers (1)
ID: K501421

EAN: 8016738764000

MPN: FCDV4G4STF517

Stanley
Catalog Stanley
7,0/10
After-sales assistance & Spare parts
30Pictures
3Videos
6Customer pics
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
10 bar
Air intake flow
222 L/min
Cylinder head rpm
2850 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
2.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
D250/10/50s
Air compressor type 2:
Coaxial
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
94 dB(A)
Noise level:
94 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
2.5 HP
Pump data
Pump brand:
Stanley
Air intake flow:
222 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
2850 RPM
Equipment
No. of outlet couplings:
1
Rubber-coated soft grip:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
83x33x65 cm
Net weight:
37 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
83x33x65 cm
Gross weight (packaging included) :
37 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 03/01/2025 - 09/01/2025
Free returns (up to 30 days after receipt) *
€ 292,19
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

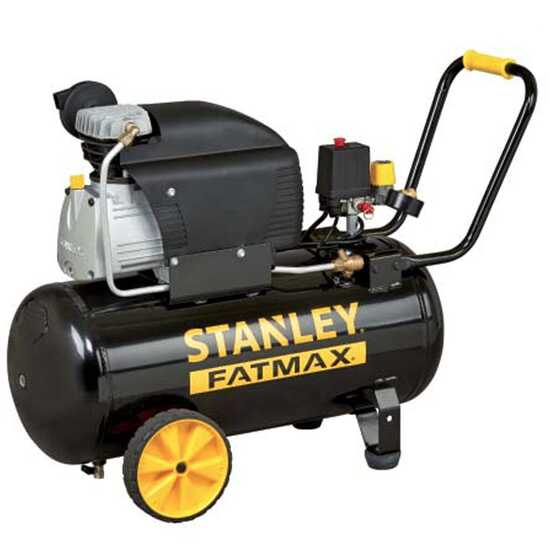

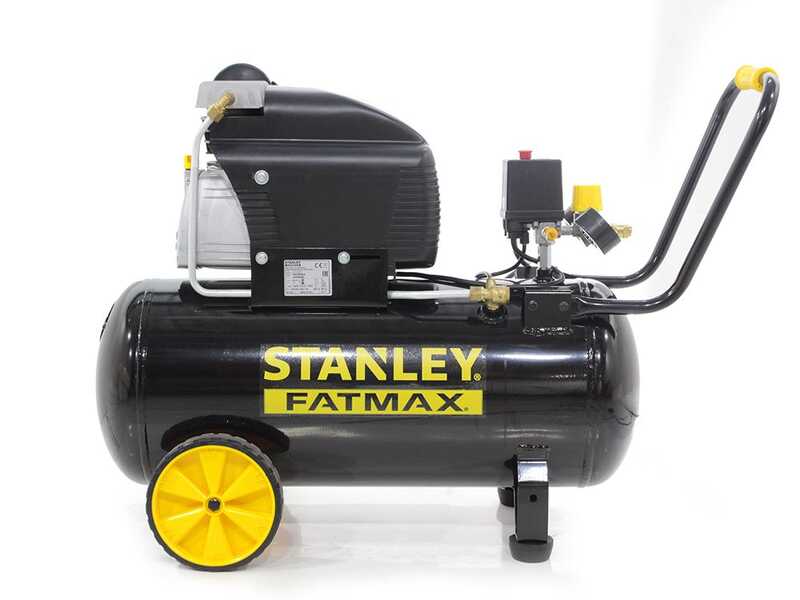

D250/10/50s Stanley Fatmax Electric Air Compressor

The Stabley Fatmax D250/10/50s air compressor is regarded as the best choice among hobbyists and professionals looking for a reliable, lightweight and high-performing equipment. It stands out for its superior quality finishes.

Powered by a 2.5 Hp electric motor, this air compressor features a compressed air suction capacity of 222 L/min. It is capable of reaching a maximum pressure of 10 bar.


It comes with a large-sized compressed air storage tank of 50 L. The air compressor weighs 38 Kg and can be easily transported thanks to its wheels and the upper handle.

Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

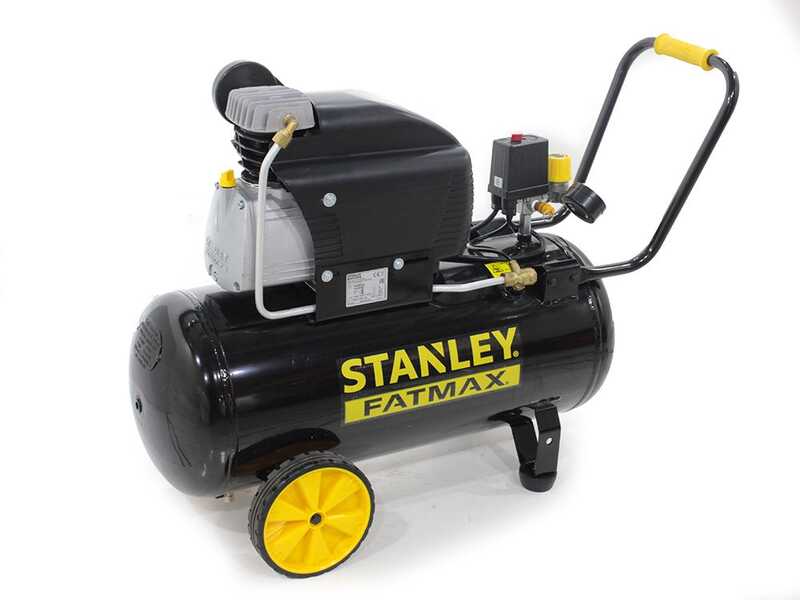

Technical features

Air intake flow: 222 L/min

Pumping unit type: coaxial

Pressure: 10 bar

Electric motor power: 2.5 Hp

Tank: 50 L


Overall dimensions:
- Width: 600 mm
- Height: 665 mm
- Depth (or thickness): 325 mm

Weight: 38 kg

Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

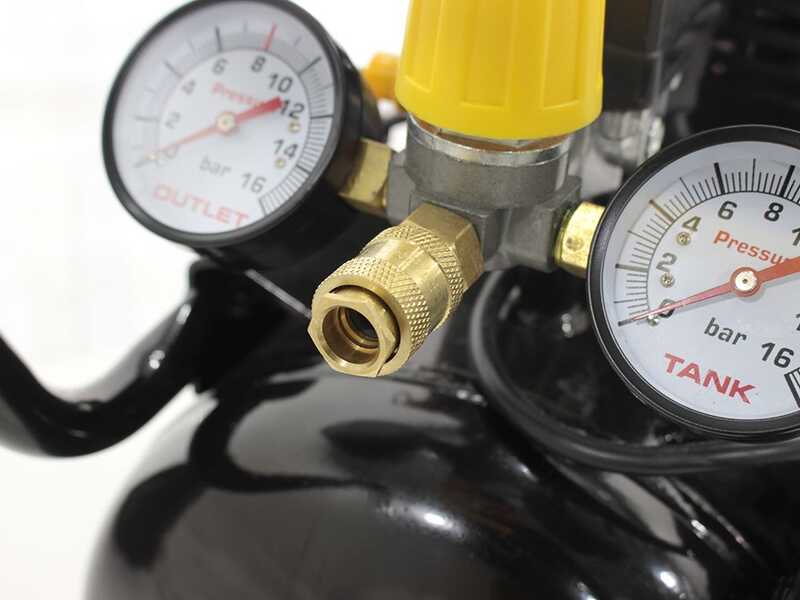

Controls

The Stanley Fatmax D250/10/50s air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

Other features

Schuko plug

Removable ergonomic lifting handle.

Large sturdy plastic wheels

Anti-vibration rubber pads

Condensate drain valve

External air filter

Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air Stanley Fatmax D250/10/50s - Wheeled Electric Air Compressor - 2.5 Hp Motor - 50 L compressed air
